The air receiver registration duty most sites don't know they have

Air receivers are one of the quieter compliance gaps in Australian industry. BYRON RAAL, founder of Compressed Air Solutions, outlines what the duty is and a two-line check you can run this week.

There’s a good chance the compressor sitting in your plant room is running a pressure vessel that legally has to be on a register, and that nobody at the site has ever registered it.

Air receivers are so ordinary that people stop seeing them. They sit in the corner, they hiss occasionally, and they get treated as plumbing rather than as what they actually are: a steel vessel holding a large volume of gas under pressure, with enough stored energy to do real damage if it fails. The law recognises that. A lot of sites don’t.

Why a receiver counts as registrable plant

Under the harmonised Work Health and Safety Regulations, which now apply in every state and territory except Victoria (Victoria runs its own OHS Regulations with equivalent pressure equipment provisions), certain pressure vessels are “items of plant” that must be registered. Whether yours makes the cut comes down to its hazard level, worked out under Australian Standard AS 4343.

AS 4343 sorts pressure vessels into five hazard levels, A through E, where A is the most hazardous. The level is driven by how much energy the vessel stores and how dangerous its contents are. For plain compressed air, which is a non-harmful gas, the maths comes out unusually clean.

The standard’s hazard number is pressure multiplied by volume, adjusted by factors for the type of fluid. For compressed air those factors collapse to a single rule of thumb you can do in your head:

Hazard number = working pressure in bar × receiver volume in litres.

That’s it. A receiver’s data plate gives you both numbers. Multiply them.

• Over 1000: Hazard Level C or higher. The vessel needs design registration and item registration.
• Between roughly 316 and 1000: Hazard Level D. The design needs registration, the item does not.
• Under about 316: Hazard Level E. No registration duty.


Put that against a typical workshop compressor running at 8 bar. Multiply 8 by the tank size and you cross 1000 at about 125 litres. So a run-of-the-mill 8-bar receiver of 150, 270 or 500 litres is squarely a registrable Hazard Level C vessel. A small 40- or 50-litre reciprocating unit usually isn’t. The line sits lower than most people assume, which is exactly why so many mid-sized receivers slip through.

One point worth being precise about: the boundary values fall to the lower hazard level, so a receiver landing exactly on 1000 is a Level D, not a C. It’s the ones clearly above the line you need to worry about.

The inspection duty that comes with it

Registration is only half the obligation. A registrable receiver also carries a standing in-service inspection duty under AS/NZS 3788, and this is the part that tends to lapse quietly once the vessel is a few years old.

For a receiver above roughly 150 megapascal-litres of stored energy, which covers most compressed air receivers past about the 200-litre mark at normal working pressures, the standard sets an external inspection every two years and an internal inspection every four years, with a hydrostatic test on an extended cycle. Smaller vessels are inspected at an interval a competent person determines rather than on a fixed clock, but “no fixed interval” is not the same as “no inspection”.

A registered vessel with no inspection history is a live compliance gap and, more to the point, an unverified pressure vessel that people work next to every day. Corrosion on the inside of an air receiver, where condensate collects, is not visible from the outside. That’s the whole reason the internal inspection exists.

Who is actually allowed to sign it off

This is where sites get caught out, because the answer is not “our maintenance team”.

In-service inspections have to be carried out and certified by a competent person as defined in AS/NZS 3788, which in practice means a suitably qualified, independent pressure equipment inspector, not in-house fitters signing their own work. Design registration likewise rests on a competent person verifying the design before it’s lodged. The registration itself is lodged with your state WHS regulator, SafeWork, WorkSafe or the equivalent in your jurisdiction, by the person with management or control of the plant.

Victoria is the one genuine exception to keep in mind. It abolished item registration for plant back in 2014, so Victorian sites deal with design registration only. Everywhere else, both apply.

**************************************************

The two-line check for this week

You don’t need a consultant to find out whether you have a problem. You need five minutes and a torch.

1. Walk to the compressor and read the receiver’s data plate. Note the working pressure in bar and the capacity in litres. If there’s no legible plate, that’s your first finding.
2. Multiply the two. If the answer is over 1000, that vessel should be on your plant register and should have a current inspection record. Pull both. If either is missing, you’ve found a gap worth closing before your next audit does it for you.

Run that across every receiver onsite, including the forgotten one behind the packing line and the standby unit nobody’s turned on since 2019. It’s the cheapest risk sweep you’ll do all year, and for a category of plant that fails rarely but fails hard, it’s the one worth doing properly.

**************************************************

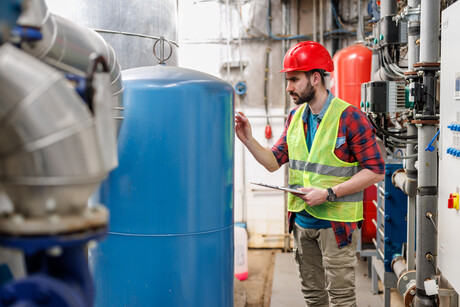

Image credit: iStock.com/ProfessionalStudioImages. Stock image used is for illustrative purposes only.
